ASA Synthetic Resin Roof Tile 2.5-3.0MM Fireproof Corrugated

Name: ASA Synthetic Resin Roof Tile 2530MM Fireproof Corrugated
Brand: YIQUAN
Price: 1 USD

China ASA Synthetic Resin Roof Tile 2.5-3.0MM Fireproof Corrugated factory

Place of Origin : Guangdong, China

Brand Name : YIQUAN

Model Number : Y1050

MOQ : 1000

Thickness : 2.3MM/2.5MM/2.8MM/3.0MM

Width : 1050mm

Effective width : 960mm

Surface : Embossed Surface

Weight : 4.4~5.9KG/Square Meter

Heat distortion temperature : Under 70.0°C

Vicat softening temperature : Under 75.2°C

Oxygen index : 35

Impact Resistance : no crack

Density : 1.75-1.95

Corrosion-resistant acid : No change

Corrosion-resistant alkaline : No change

Purlin spacing : 660mm

Screw diameter : 6.3mm

Container load capacity : 4000-5000 M2

Contact Now

Product Description

product name	Spanish Style Synthetic Resin Roof Tile
product color	purplish red brick red gray blue gold
product size
length	customized(according the pitch of 219mm)
width	overall width 1050 mm effective width 960mm

thickness	2.5±0.1mm	2.8±0.1mm	3.0±0.1mm
Weight	5.0±0.1kg/m2	5.6±0.1kg/m2	6.0±0.1kg/m2

Containe

r Load

capacity

SQ.M/ 20 FCL (21TONS)

4000 M2

3500 M2

3300 M2

SQ.M/ 40 FCL (26TONS)

5000 M2

4300 M2

4100 M2

Test Report

Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos and Environment friendly Recycling material	GB6566-2001, A standard good for Environment
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index:35	GB/T2406-1993
Vertical Burning	FV-0	FV-0	GB/T2408-1996
horizontal Burning	FH-1	FH-1	GB/T2408-1996
Impact Resistance	no crack	0/10	GB/T8814-2004
Density	1.75-1.95	1.79	GB/T1033-1986
Corrosion-resistant	Acid (HCL,H2SO4,HNO3)5%	No change	QB/T3801-1999
Corrosion-resistant	Alkaline(NaOH)5%	No change	QB/T3801-1999

ASA Synthetic Resin Roof Tile 2.5-3.0MM Fireproof Corrugated

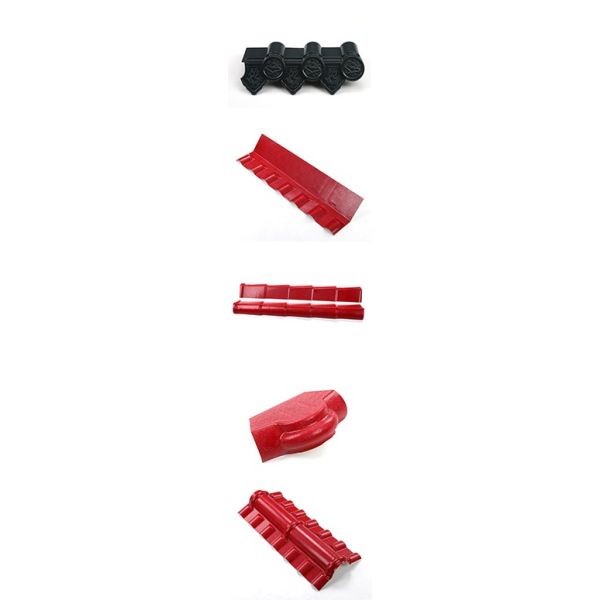

Accessories

6.Archaize imapct wearther board

Archaize impact wearther board referred to as "drop of water eaves",install on the tile at the eave.

1.Main tile

The main tile to installed on the purling size as 600 mm to 900 mm

7.Vertical wall fleshing board

Installed in the main tile between both sides can be used for drainage.

2.Tee tile

Installed in the three sides slope border which could cover three ridge tile

8.Left/right hand side eave board

To install the Left/right hand side eave board on the two adge sides of the main tile

3. Four-ways tile

In all around the border of the slope place,covering the four ridge tile.

9.Endcap of main ridge tile

After to installed the main tile and the main ridge tile to seal the endcap of main ridge tile

4.Tilted ridge tile

Tilted ridge tile to covering the two sides of the main tiles

10.Main ridge tile

Installed on the two main borders,which could cover the two main tiles on it.

5. Head sealing tile

To install the head sealing tile on the end of the tilted ridge tile

Installation process

Installation

•The Purlin can choose square tube (60*40*3mm) or C-type steel (100*50*20*3mm)

or anticorrosive wood square(60*40mm)

• Purlin spacing 660mm,installed bottom-up

• The main tile should be installed in reverse direction according to local wind direction,

with transverse overlap of a tile wave and longitudinal overlap of at least a pitch.In addition ,

the lower part of the overlap mount should be supported by a purlin

•While installing the main ridge tile, installation should be carried out after a section of the first

ridge tile is truncated to prevent water seepage from the overlap of the tiles due to large gap

•Main ridge tile and tilted ridge tile should be sawed to level state at the overlap location and

the Tee is installed after installing the main ridge tile and tilted ridge tile.The slope angle should be

considered while installing the ridge tile to avoid water leakage due to too low gradient.

•The fixed parts are special parts.Pre-drilling should be carried out before fixing ,the bore should

be 2mm bigger than the screw diameter

•It is suggested to use 6.3mm diameter tapping screw
